Opener Damage After a Broken Spring: The Part Nobody Checks

Quick Answer: A spring that breaks in service leaves the opener lifting a load it was never sized for, sometimes for weeks. Replacing the spring restores the door, but it does not undo what the opener absorbed.

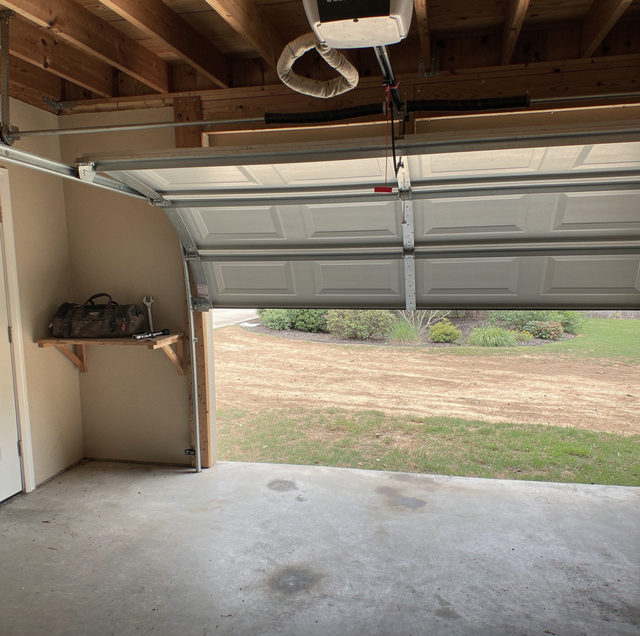

The spring is replaced. The door runs the full way up and down, quieter than it has been in weeks, and the tools are going back into the van. Nobody mentioned the opener bolted to the joists above it all. For as long as the spring was broken, that opener was doing the lifting, and nobody has looked at it.

What the Springs Carry and What the Opener Does Not

A sectional door is a heavy object made to feel light. Torsion springs above the opening store energy as the door comes down and return it as it goes up, so through most of its travel it is close to weightless. The opener starts the mass moving and stops it in the right place.

When a spring breaks, that ends in a fraction of a second. A single-spring door loses its counterbalance outright; a two-spring door keeps about half, which is worse for the opener, because the door still moves and the failure never announces itself.

An opener does sense what it is pulling against, and it reverses when resistance climbs past a set threshold. The question is where that threshold sits. Force settings are established against a healthy, balanced door and carry deliberate headroom, so a cold morning or a stiff roller does not cause a nuisance reversal. That headroom is why an unbalanced door can keep cycling for days while working the opener far outside its sizing.

The Door Arm and the Fasteners at the Top Section

Follow the load up from the door, and the first thing it reaches is the curved arm, bolted to a bracket on the top section at one end and to the carriage at the other. Every pound the springs stopped carrying travels through those two connections.

The top section is a poor place to absorb it: thin skin, with the bracket fastened into the end stiles and the section's reinforcement. Overload shows as elongated bolt holes, a bracket rotated out of square, fasteners backed out far enough to leave a ring of bright metal, or a bowed arm. A bracket working in its holes keeps working every cycle.

The Carriage and the Release Pin That Joins It

Inside the rail, the piece that transmits the pull comes in two parts: an outer carriage fixed to the chain or belt and an inner carriage that holds the door arm. A release pin joins them, and pulling the emergency release cord withdraws it.

That pin and its bore are the narrowest point in the load path. On an unbalanced door, it takes the full lifting force cycle after cycle, and the wear usually shows the same way: the bore goes oval, the pin galls down one side, and the small internal spring and latch that reseat it lose the crispness to snap back. A molded carriage body held under a load it was never designed for creeps permanently.

An overloaded carriage rarely fails the day the spring is replaced. It fails months later, when the pin will not reseat after a manual release.

No counterbalance behind the door makes that pin the whole load path. The release cord is safe to use only with the door fully closed and the counterbalance intact, and it is never a way to hold a door open.

The Rail, the Chain or Belt, and the Tensioner

The rail is a light section carrying a load meant to stay horizontal and small. Under an unbalanced door, it bows upward at mid-span on the pull stroke, so the carriage stops running true and wears on the edges of its sliding surfaces rather than on the faces.

A chain answers the same overload by stretching, as its pins and bushings wear and the take-up spring at the far end runs further into its travel. A belt frays instead, along one edge where the extra load pushed it against the rail wall, since its steel cords resist stretch better than sideways loading. The drive sprocket and idler pulley take the same increase.

The Drive Gear and the Sprocket

Chain and belt units transmit motor torque through a helical gear, commonly molded in nylon, meshing with a worm on the motor shaft. Whether the gear is meant to give way first, or simply does because nylon is the softest thing in the train, is not something the part settles. Either way, an overload lands there rather than on the motor's windings or the steel shaft.

Overload works on it gradually. Tooth crests round over well before anything strips, and rounded teeth carry load on less face, so what remains wears faster. Grease pushed from between worn faces collects as a dark paste inside the gear cover, a reliable sign the gear was asked for more than it was built to give.

The Motor, the Start Winding, and the Run Capacitor

The starts are where the real damage goes. Every cycle against an unbalanced door begins with a long, heavy start: high inrush current held longer than usual, through a start winding and a run capacitor sized for the brief start a balanced door asks.

Heat accumulates. Winding insulation degrades faster at elevated temperature, and an electrolytic capacitor dries out the same way, its capacitance drifting down from its rated value. A weaker capacitor produces less starting torque; a weaker start takes longer, and a longer start generates more heat. The thermal protector in the motor head opens on temperature and resets once things cool, which is why an opener that quit in the afternoon can seem recovered by evening.

What the Logic Board Learned From a Healthy Door

An opener's control board carries a stored picture of the door. During setup, it learns where travel stops in each direction and records how much force a normal cycle requires each way, all while the counterbalance is intact.

After a spring breaks, that picture stops describing the door, and every cycle through the broken-spring period was judged against numbers from a door that no longer behaved that way. The board has no way to know a spring failed, and nothing in a spring replacement writes to it. Whether the stored values still describe the door is a question a technician settles at the visit, along with whether the board shows signs of weeks near the top of its output. None of that is visible from the floor; a board reports its state in flash codes that mean nothing without a model reference.

What a Technician Checks at the Spring Visit

With the counterbalance restored, the door is light again, and the opener is back to the small push it was built for, so of course it runs well. A smooth cycle after a spring repair reports on the springs only.

An inspection at that visit runs back along the path the load took: the door arm and its bracket for elongated holes and fastener movement, the carriage for play and whether the release pin seats cleanly, the rail for deflection, and the chain or belt at each end. The gear cover comes off to inspect the tooth faces, and the stored travel and force values are compared against the door as it now behaves.

Some of that turns up nothing, which is a useful result on record for a door just through a failure.

Frequently Asked Questions

Does a broken cable put the same load on the opener as a broken spring?

Not in the same shape. A failed cable goes slack and crowds out of its groove on the drum, so one side of the door stops being carried while the other still is. The door lifts crooked and binds in its tracks, so what reaches the opener is friction and jamming layered on weight, hardest at the door arm bracket.

How long does an unbalanced door take to hurt the opener?

There is no calendar answer, because the meaningful unit is cycles. A door used as a household's main entry may run several cycles a day, so a week of that outweighs a month on a door used twice a week. Some newer models keep a running cycle count in their diagnostics, giving a technician an actual number rather than an estimate.

Is a manufacturer's warranty likely to cover an opener damaged this way?

Whether a given warranty responds is a question for the manufacturer that wrote it, not for a technician. What helps either way is the data label on the side or back of the motor head, carrying the model number, the serial number, and a date code. That is where any warranty conversation starts.

Are wall-mount and screw-drive openers affected the same way?

The load path differs. A wall-mount, or jackshaft, opener sits beside the torsion shaft at the end bearing plate and drives it directly, so a spring failure reaches it through the shaft and the cable drums, with no rail, carriage, or door arm involved. A screw-drive unit transmits through a threaded steel shaft and a traveling nut, concentrating the load on the thread form.

Can the opener be assessed before the springs are replaced?

Partly. The split is between what can be measured and what can only be watched. Dimensional wear reads the same whatever load hangs off the rail. Behavior does not: force, travel, and the sound of a start are all taken against the fault. What the unbalanced door does give is a baseline: the settings as they stand can be written down before the new springs go on, turning one later reading into a comparison. An opener that cannot finish a cycle at all has already spent its headroom.

What if nobody used the opener after the spring broke?

Then the best case applies, and it happens often, because the break is loud enough to stop everyone in the house. The exception worth naming is a spring that lets go mid-travel while the opener is pulling: that single cycle transfers the whole load instantly, at speed. Say so when you book.
